2020 Drone/UAV Product Inventory

 During the new crown epidemic in 2020, UAV has played an irreplaceable role in epidemic prevention propaganda, remote temperature measurement, material delivery and so on. It can be said that this year is a year of rapid development of UAV applications. So what new UAV products were released in 2020? The drone world will take stock today.

 Consumption level

 Grand Mavic Air2：

 With a larger 1/2 inch sensor, Can take 48 million pixels, Can record 4 K/60fps of video, And HDR videos, Can also shoot 8 K mobile delay photography. A new focus-following mode introduced by Royal Air2 integrates three powerful shooting functions: intelligent follow 3.0, interest point surround 3.0 and focus 2.0. Up to 10 km full HD transmission distance, Flying safer, The duration can be up to 34 minutes.

Mini2： of Greater Xinjiang

 Ultra small fuselage, less than 249 grams weight, equipped with 10 km of digital graphics transmission, the longest flight time of 31 minutes, can resist class 5 wind, equipped with a three-axis cloud camera, the highest can record 4 K/30fps of video.

Ho Kai Smart SwanK1( the world's first consumer vertical take-off and landing fixed wing):

 K1 range of 45 minutes, control distance of 10 km, aircraft range of 35 km, map transmission distance of up to 5 km. K1 very friendly-level flying hand very friendly, modular design, assembly without tools, direct plugging. K1 can also set up a variety of protection, such as high limit, geographical fence (beyond a certain range of automatic return), one-click return, low power return, out of control return, and so on.

Daotong EVO II Series:

 The fuselage is equipped with 12 visual sensors, To achieve multi-angle omnidirectional obstacle avoidance; 40 minutes long endurance ,9 km long map transmission, class 8 wind resistance and maximum 20 m/s flight speed. The world's first UAV EVO II, with K 8 cloud head camera Can shoot 4 times more than 4 K ultra-high-definition image.

EVO II PRO is equipped with Sony's new 20 million pixel hypersensitive CMOS image sensor, supporting up to 6 K of video resolution. Another EVO II PRO RTK version, to achieve centimeter level accurate positioning.

X8SE 2020： of flying rice

 The quotation is 2999 yuan. Achieved 4 K video recording ,8 km map transmission, anti-wind level 5, also reached an amazing 35 minutes. Support one-click blockbuster, intelligent follow, route planning shooting, panoramic shooting, delay photography, night scene mode and so on.

Agricultural applications

 Dajiang T30 Plant Protection UAV:

 Equipped with 30 kg super-large medicine box, new 16 nozzle layout, the optimal spray range to 9 meters, field spraying efficiency of 240 mu per hour. New spherical radar system, standard RTK high-precision positioning module, equipped with dual FPV camera, new remote control to bring 5 km stability map transmission.

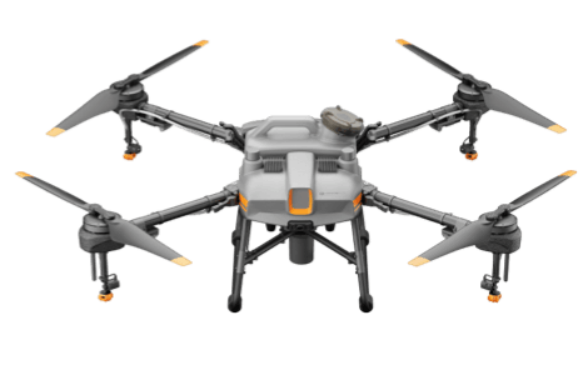

Dajiang T10 Plant Protection UAV:

 Carrying a 10 kg box, T10 plant protection unmanned aerial vehicles up to 5 meters, Work efficiency 100 mu per hour, Designed with 4 sprinklers, Spray flow up to 2.4 liters per minute. Standard RTK、 front and rear dual FPV、 spherical radar system, whole machine protection IP67.

Tiannong G300 Agricultural Plant Protection UAV:

 Maximum load 28 kg, full load duration 13 minutes, maximum spray 7 meters, maximum flow 6 liters / minute, working efficiency can reach 200 mu / hour, IP55 protection grade.

Tiannong G300 Agricultural Plant Protection UAV:

 Maximum load 28 kg, full load duration 13 minutes, maximum spray 7 meters, maximum flow 6 liters / minute, working efficiency can reach 200 mu / hour, IP55 protection grade.



P80 Agricultural UAV 2021:

 40 kg load capacity, flexible with 35 liters of intelligent medicine box and 60 liters of seed box, P80 theoretically can achieve up to 315 mu per hour spraying efficiency or 1.6-2.4 tons of sowing efficiency. Able to shoot, splice and analyze farmland images, generate farmland high-definition map and AI location map.

V40 2021 Double-rotor Agricultural UAV:

 Innovative dual-rotor flight platform, can be replaced by the task system between farmland mapping, accurate spraying and sowing functions, payload 20 kg, with a strong double-rotor wind field, the maximum width of 10 meters, can complete 240 mu of plant protection in an hour, the whole machine IP67 protection.

Kai Fei Smart A22RTK：

 After the payload was raised to 22 kg, the seeding function was added on the basis of spraying liquid pesticide. The particles of 0.5 mm-15mm were sown accurately, the sowing width could reach six meters, the volume of the box reached 26 liters, and the maximum sowing speed could reach 5 kg / min. Equipped with a new layout T pressure relief nozzle, can provide 8 liters / minute super flow, effective spray can reach 8 meters, operating efficiency can reach 60-200 mu per hour.

Kai Fei Smart Q10Pro RTK：

 Q10Pro (R T K) uses exactly the same flight control module as the A22RTK and is also equipped with the same AG12RTK remote control, and the actual load of 10 kg has been upgraded to 12 kg, with a T nozzle installed to increase the spray amplitude. Effective spray can reach about 8 meters.

Agricultural Plant Protection UAV issued TG26 extension attack:

 Six rotors provide power, front and rear radar obstacle avoidance, medicine box capacity 26 liters, operating efficiency 220 mu / hour. Equipped with independent drop lamp, night can also work safely. Equipped with double pump ,9 nozzle, double flow meter, the maximum flow rate can reach 6 l/min.

Han and Venus 30:

 The capacity of the 40 liter distributor is 32 kg super load ,9 meters super spray ,1 minute and 5 mu of land, and the continuous life span is up to 10 hours. External RTK function, control two not wrong.

Industry applications

 M300RTK duration of 55 minutes, map transmission up to 15 km, six-way positioning obstacle avoidance 40 meters detection distance. Chan Si H20 a wide-angle camera, thermal imaging camera ,23 times zoom camera ,1200 meters laser ranging in one.

Advanced Edition:

 Royal 2 industry advanced version has 640×512 thermal imaging camera and 48 million pixels visible light camera, support 32 times digital zoom, can carry RTK module to achieve centimeter level positioning 10 km high-definition graphics transmission, six-way obstacle avoidance.

XDynamics 2nd generation flagship Evolve 2：

 Weight less than 2 kg, life can reach 33 minutes. Supports shooting up to 4 K、120fps、100Mbit/s of video and shooting 12 million pixels of pictures. Maximum speed of 93 km / h, maximum map transmission distance of 11 km.

Skydio X2：

 For 35 minutes, Equipped with 12 million ,100 times digital zoom main camera, Infrared sensors, Active lighting, GPS positioning to assist night flight, With x256 320 pixel FLIR thermal imaging lens, 360 degree panoramic camera system, Pitch rotation 180 degrees cloud head. Skydio X2's not just one model, It's a series, Includes Skydio X2D for military and defence clients and Skydio X2E. for businesses, emergency personnel and other civilian institutions

EVOⅡDUAL：

Set FLIR BOSON high-end compact thermal imaging camera and 8 K camera in one to meet the needs of industry users in fire, search and other professional applications. Another EVOⅡDUAL RTK version, to achieve centimeter level accurate positioning.

Daotong "Dragon Fish ":

 With a range of intelligent functions, such as one-click take-off and landing, AI intelligent tracking, intelligent pointing flight, can carry dual-light camera, three-photon camera, multi-spectral camera and other different mount, with 4 ultra-high-definition 240-fold mixed light change, ultra-far infrared detection and other shooting capabilities.

Pegasus V1O、 Pegasus D2：

 Pegasus intelligent aerial survey / remote sensing / reconnaissance / inspection system, using the same type of general intelligent battery, all loads exchange. With high-precision differential GNSS card, supporting UAV butler professional version (measurement version) software, support GPS fusion solution, support DOM、DEM、DSM、TDOM、LAS point cloud and other data processing and browsing.

XC25： pride

 The UAV has a load of 6 kg, a control radius of 50 km and a life span of 6 hours. All the key systems of the whole machine are designed with redundancy, double battery, double rudder surface, double IMU sensor and so on. Suitable for traffic command, emergency rescue, intelligent maritime, electric power inspection and other industries.

H520E： Haoxiang

 Using DataPilot software systems, flight paths that can be executed repeatedly can be planned without the help of expensive third-party software to facilitate the continuous and efficient production of orthophoto ,3 D scans, and crop data images. Moreover, survey flight, building survey, building information modeling, accident site reconstruction ,3 D scanning, orthophoto and photo splicing can also be done using DataPilot efficiently and accurately.

V400 Albatrosses:

 The maximum take-off weight is 400 kg and the maximum load is 100 kg. Pure electric version full load mileage 300 km, mixed version full load mileage up to 1000 km. Can self-driving flight, with air intelligence perception, avoidance ability, support seamless docking with 4 G、5G network. It can be used in express logistics, emergency material transportation, medical rescue and fire emergency scene.

M8pro： with wings

 M8 second generation model is a new surveying and mapping product for high precision aerial survey market. Full load maximum duration 150 minutes, no load maximum duration 190 minutes, maximum take-off weight 7.5 kg, maximum load 1 kg, cruise speed up to 21 meters per second. Independent drawer load bin design, rapid replacement, users can flexibly choose orthophoto or tilt camera according to operational requirements.

M9： with wings

 Standard take-off weight 15.5 kg, maximum load 3 kg, maximum duration 203 minutes, cruise speed 70 km per hour, IP45 protection grade. Independent drawer load bin design, rapid replacement, users can flexibly select zoom or dual-light camera according to operational requirements.

CW-25： vertical

 Designed for a large area of mission range, the vertical take-off and landing fixed-wing UAV can be equipped with EFI system, duration 360 minutes, cruise speed 100 km per hour, maximum take-off weight 25 kg, maximum take-off altitude 4500 meters.

CW-15Q： vertical

 CW-15Matrix is a rotor platform in the matrix system, which can be adapted to all mission modules CW-15( vertical and horizontal Dapeng series. Maximum payload 2.5 kg, full load 50 minutes, maximum flight speed 12 meters per second, cruise speed 8 meters per second. Can achieve independent take-off and landing, low voltage return and various emergency disposal.

Huiming Jet Oil Rotor UAV:

 Duration more than 2.5 hours, maximum load of 15 kg. Support double mount, can fly normally in minus 20 degrees. Support low voltage alarm, out of control protection, automatic return, manual precision control and planning route autonomous flight.

If you know the other 2020 UAV new products, welcome to leave a message to tell us, we will add.
